Model Number : DG092-030-001

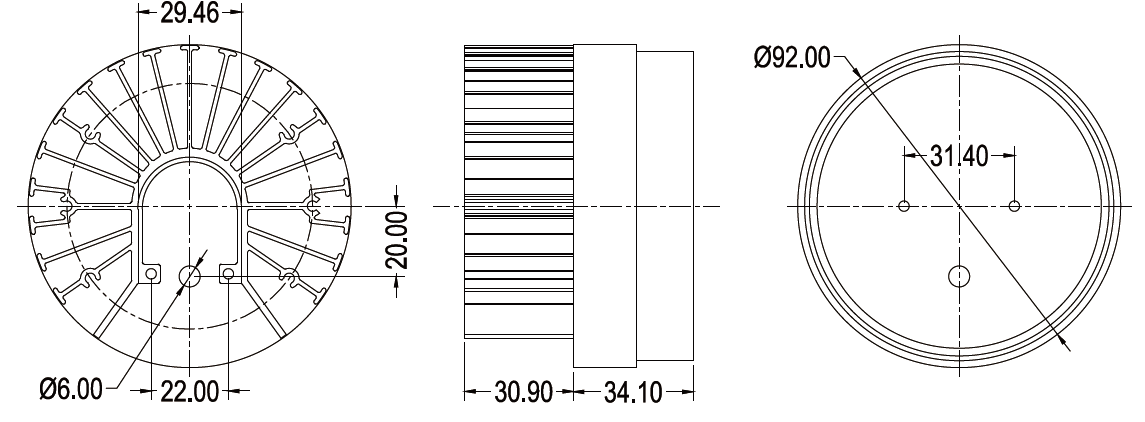

Dimension (mm) : Ø92x48
Cooling Surface(mm²) : 75,529
Cooling Performance (lm) : 2,400~3,600
Thermal Resistance(°C/W) : 1.5~2.5
Dissipated Power (W) : 20W~30W
Weight : 0.28 kgs/0.62 lbs
Material : AL1070 Aluminum
Surface treatment options : Anodized Black or clear; Electrophoresis Black

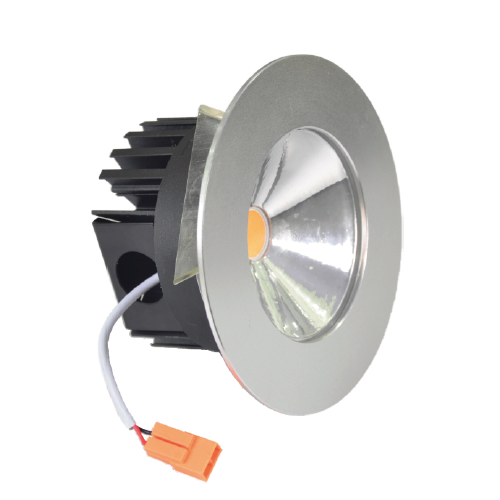

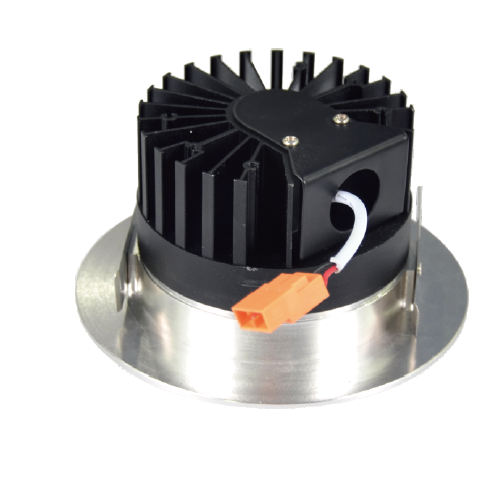

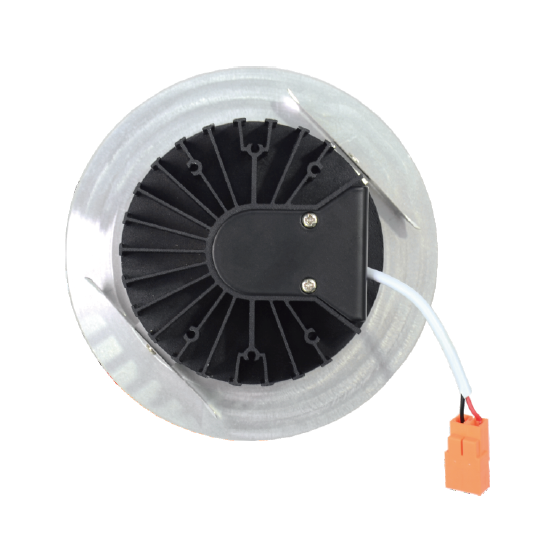

20～30W COB LED Down Light Heat Sink Module (4") |
Features : |
● Best Thermal Performance for 20~30W COB LED (Recessed) Down Light/Track Light Application ● Integral Whole Design: Heat Sink and LED Driver Power Cables Conduit Box ● Best Fit Most Popular COB LED Brands: Cree CXB2530 / Bridgelux V18 / Citizen CLU038 / Samsung LC030C; Thermal Resistance 1.5~2.5°C/W ● Cold-Forging Benefits: Lower Fin Height, Lighter Weight, and Down Size ● Better Thermal Conductive Aluminum AL1070 Material Than Extrusion AL6061 or Die-Casting ADC12 ● Advanced Surface Treatment for Best Corrosion Protection ● Great Varieties of LED Lighting Applications |
|
 |

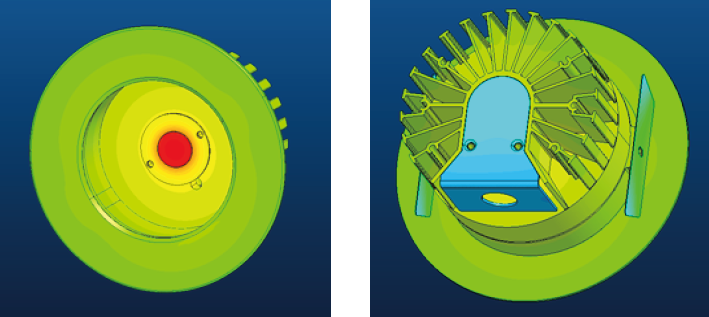

Heat Dissipation Simulation:
|
Temperature Rise Curve: |
 |
Temperature Rise Curve: |
 |

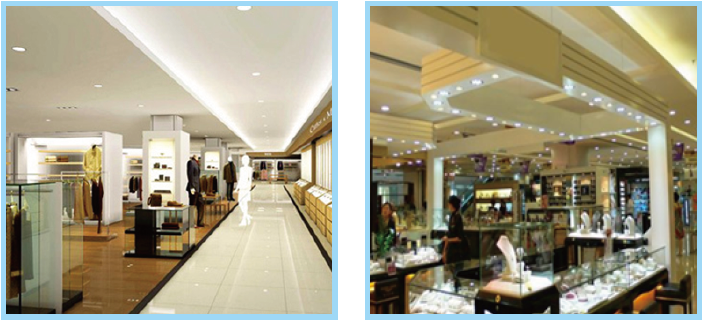

Applications: |
| A great variety of applications in Recessed Down Light, Track Light, Spot Light and more |
 |
