Model Number : DG135-050-001
Dimension (mm) : Ø135.4x46
Cooling Surface(mm²) : 138,816
Cooling Performance (lm) : 4,800~6,000
Thermal Resistance(°C/W) : 1.0~1.5
Dissipated Power (W) : 40W~50W
Weight : 0.6 kgs/1.32 lbs
Material : AL1070 Aluminum
Surface treatment options : Anodized Black or clear; Electrophoresis Black

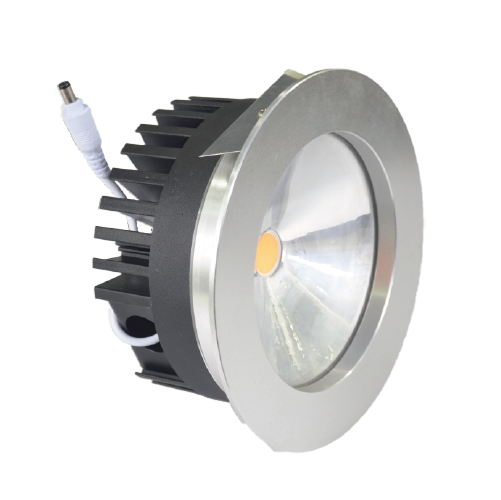

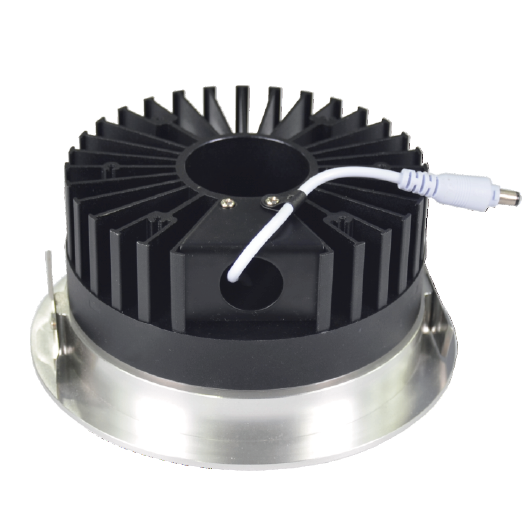

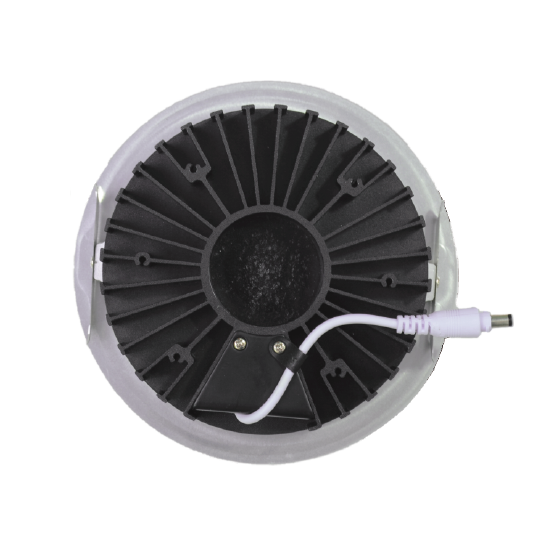

40～50W COB LED Down Light Heat Sink Module (6") |
Features : |
● Best Thermal Performance for 40~50W COB LED (Recessed) Down Light/Track Light Application ● Integral Whole Design: Heat Sink and LED Driver Power Cables Conduit Box ● Best Fit Most Popular COB LED Brands: Cree CXB3050 / Bridgelux V18 / Citizen CLU048 / Samsung LC040C; Thermal Resistance 1.0~1.5°C/W ● Cold-Forging Benefits: Lower Fin Height, Lighter Weight, and Down Size ● Better Thermal Conductive Aluminum AL1070 Material Than Extrusion AL6061 or Die-Casting ADC12 ● Advanced Surface Treatment for Corrosion Protection ● Great Varieties of LED Lighting Applications |
|
 |

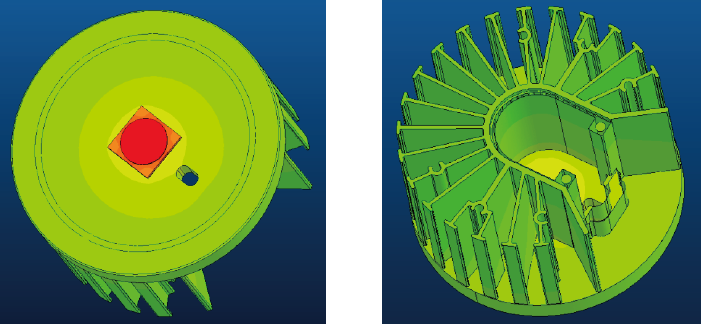

Heat Dissipation Simulation:
|
Temperature Rise Curve: |
 |
Temperature Rise Curve: |
 |
Applications: |

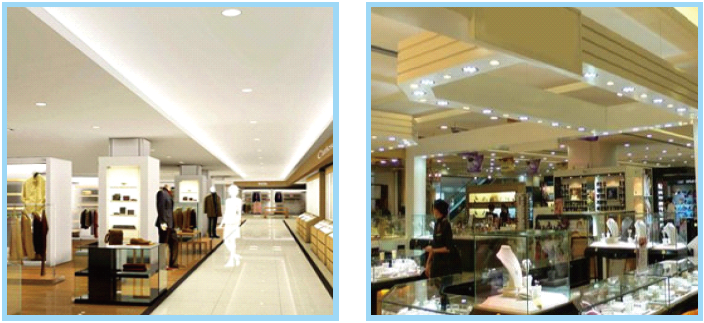

| A great variety of applications in Recessed Down Light, Track Light, Spot Light and more |
 |
