Model Number : HE5600-001-A01
Dimension (mm) : 1,048*1,072*35
Cooling Surface(mm²) : 1,095,684
Cooling Performance (lm) : 60,000~72,000
Thermal Resistance(°C/W) : 0.1~0.2
Dissipated Power (W) : 100~600W
Ｗeight : 7.5 kgs/16.34 lbs
Material : AL6063-T5
Surface treatment optional : Anodized clear

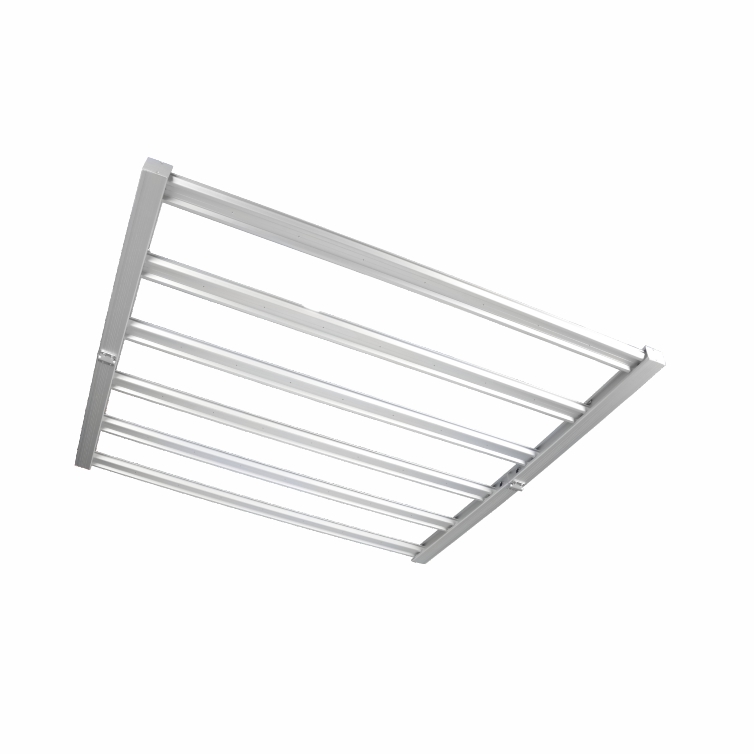

Linear LED Grow Light - Heat Sink Assembly |
Features : |

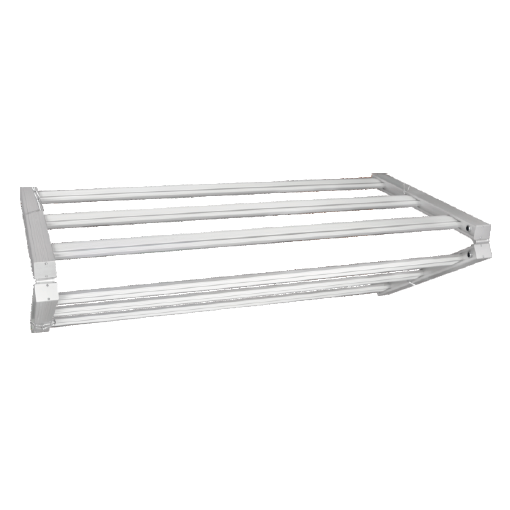

●Slim Type Aluminum Extrusion Heat Sink Design: Efficient and Portability ● Matrix Installation Design for Uniform Lumen Flux ● Flexible Adoption of Great Variety SMD LED Modules ● Various combination of Linear Light Bar for Lighting Coverage Area Expansion from 100W up to 600W ● Foldable Pivot Hinge Design for Less Required Package, Storage, Shipping Space and Logistic Cost Saving ● Advanced Surface Treatment for Best Corrosion Protection ● Great Varieties of LED Lighting Application: Grow Light, Linear Light Bar, etc |
|
 |
|
Applications: |
| A great variety of applications in Grow Light, Linear Light Bar and more. |
 |
