Model Number : CSB0068B-A01
Dimension (mm) : 900*104.8*41
Cooling Surface(mm²) : 895,684
Cooling Performance (lm) : 36,000~48,000
Thermal Resistance(°C/W) : 0.12~0.22
Dissipated Power (W) : 300W~400W
Weight : 2.8 kgs/6.17 lbs
Material : AL1070 Aluminum
Surface treatment options : Anodized Black or clear; Electrophoresis Black

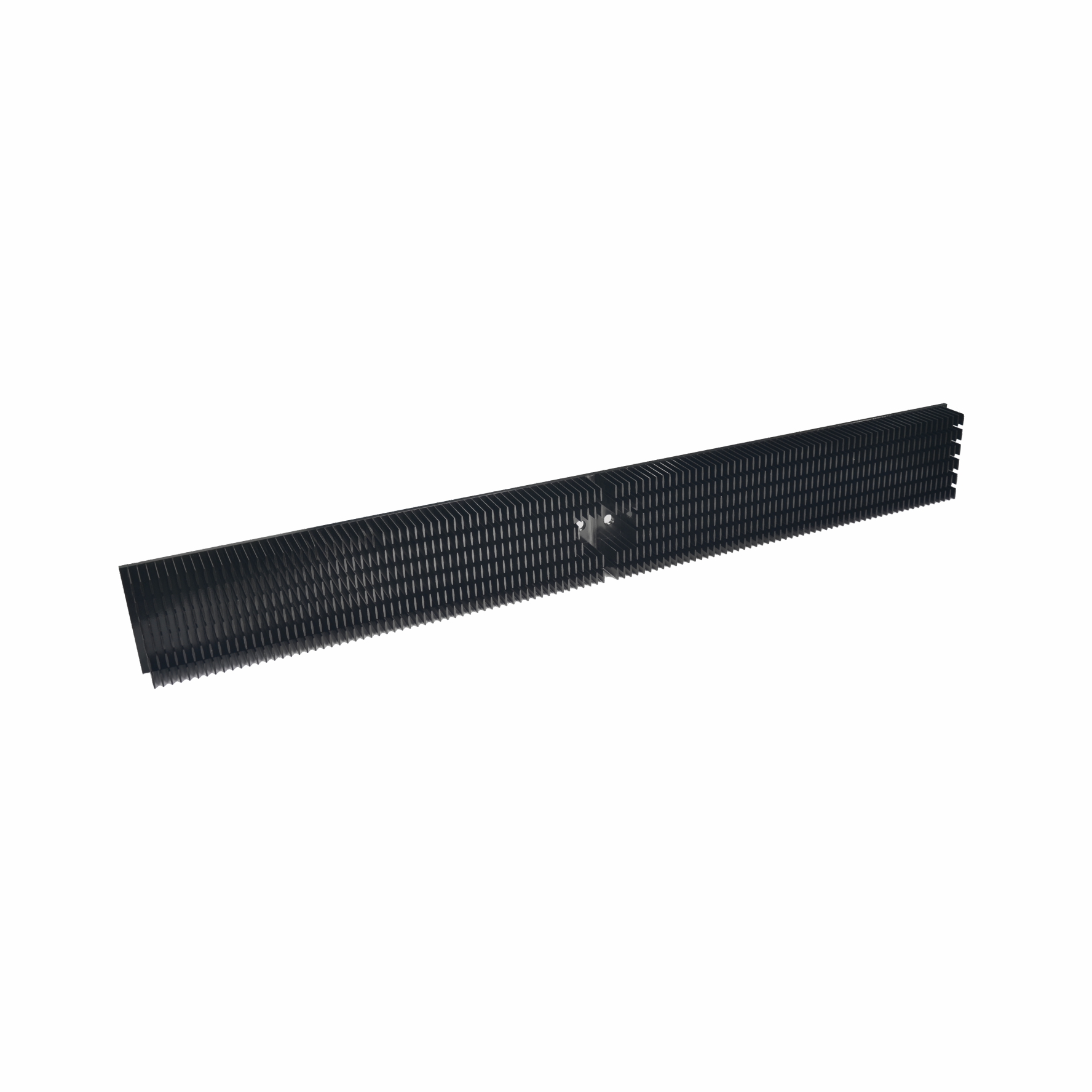

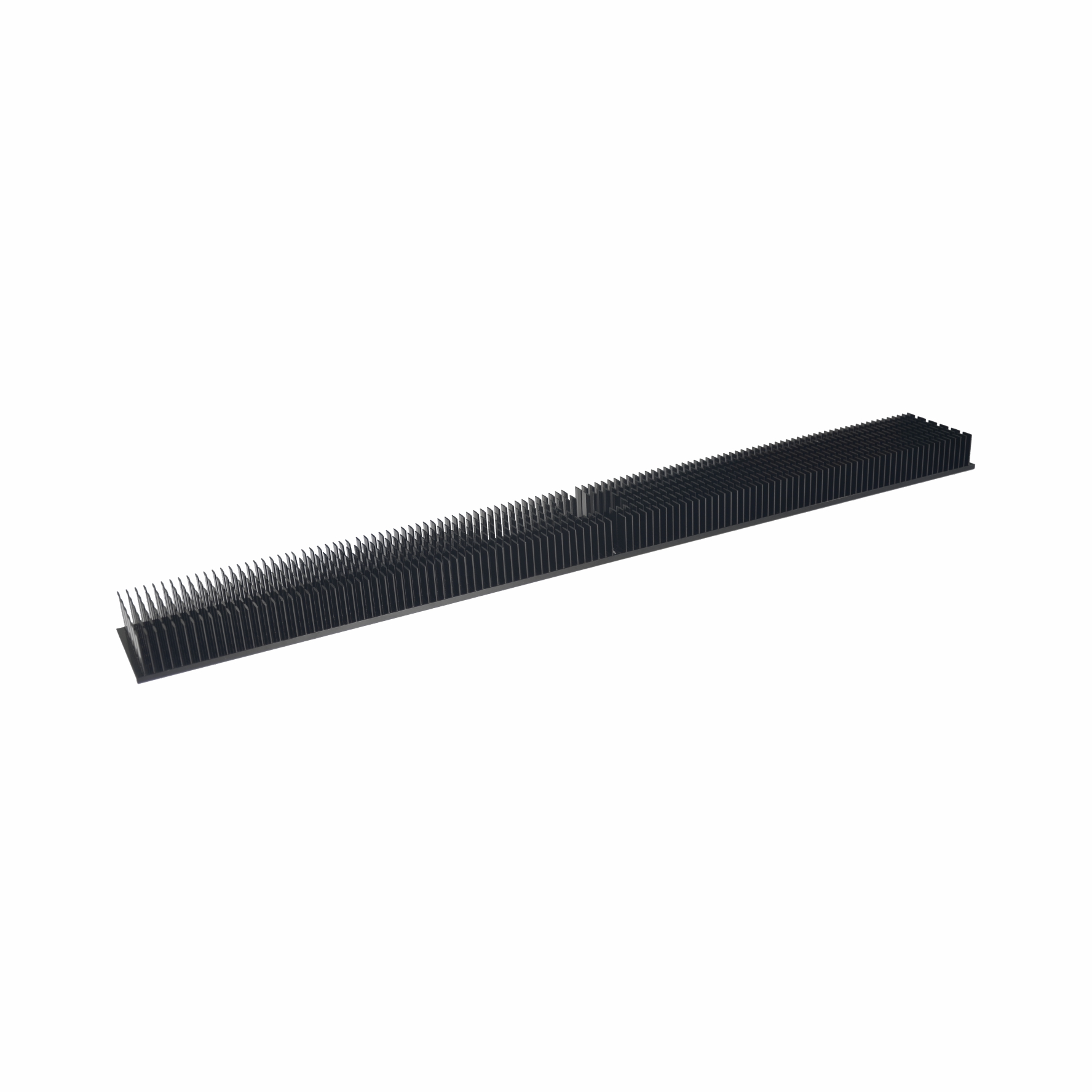

400W Grow Light Cold-Forged Heat Sink |
Features : |
●Cold-Forging much Better Thermal Performance Suitable for High Power LED Lighting ● Shorter LED PCB Temperature Rise Time to Avoid Light Decay Risk Cold-Forged heat sinks with better thermal conductivity take much less time(about 20~25 minutes) for LED PCB Temperature to reach a constant level and avoid possible light decay problem due to long time high heat accumulation ● Slim & Linear Low Profile for Less Shadow & Greater Lighting Coverage Area ● Friction Welding Technologies Enable more Secured LED Lighting Installation and Extrusion Flexibility ● Advanced Surface Treatment for Best Corrosion Protection ● Great Varieties of LED Lighting Application: Grow Light, Linear Light Bar, Striplight, etc |
|
 |

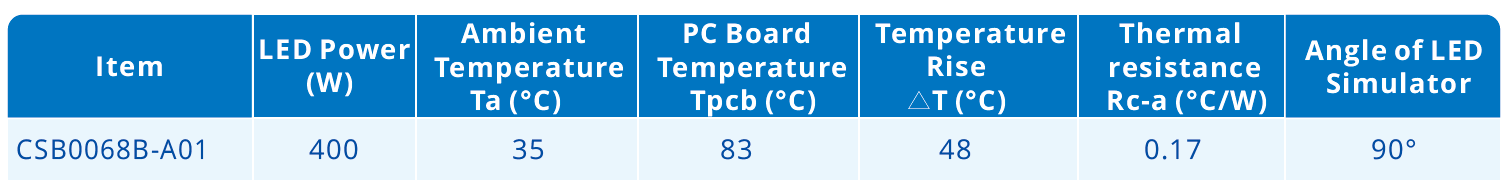

Heat Dissipation Simulation:
|
Temperature Rise Curve: |
|
Applications: |
| A great variety of applications in Explosion-Proof Light, High Bay Light and more. |
 |
LED Light
IT Server & Storage
