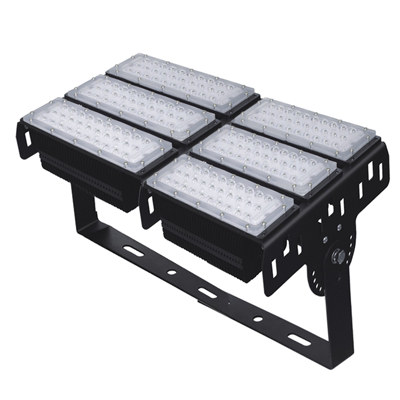

Model Number : SF1300
Power (W) : 300W
Size (mm) : A:270xB:570xC:60
PCB Size (mm) : 222x52
Chip Model : XTE
Multiple-series Connection : 12S 4P
Series/Parallel : ≦50° 60°x 60°
Beam Angle : 90°x 90° 60°x 150°

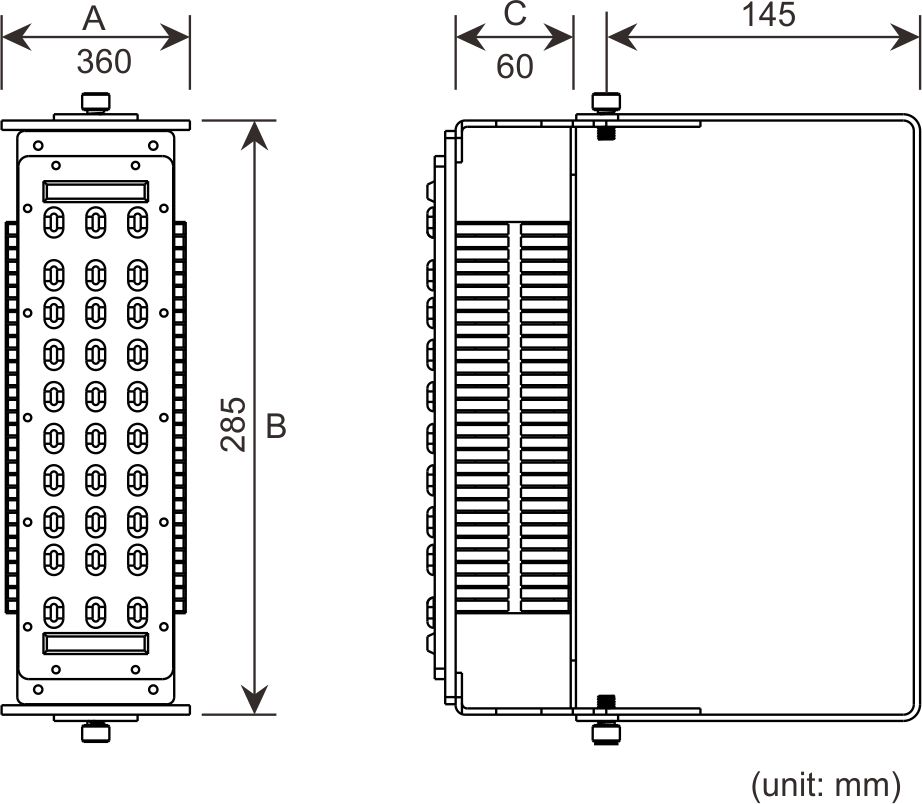

Mechanical Drawing
 |
 |
 |
 |
| The perfect combination of heat dissipation and thermal conduction. 3D type radiator which is formed from cooling modules and fin ducts can greatly lower down the temperature of light source, extending its life span. |
 |

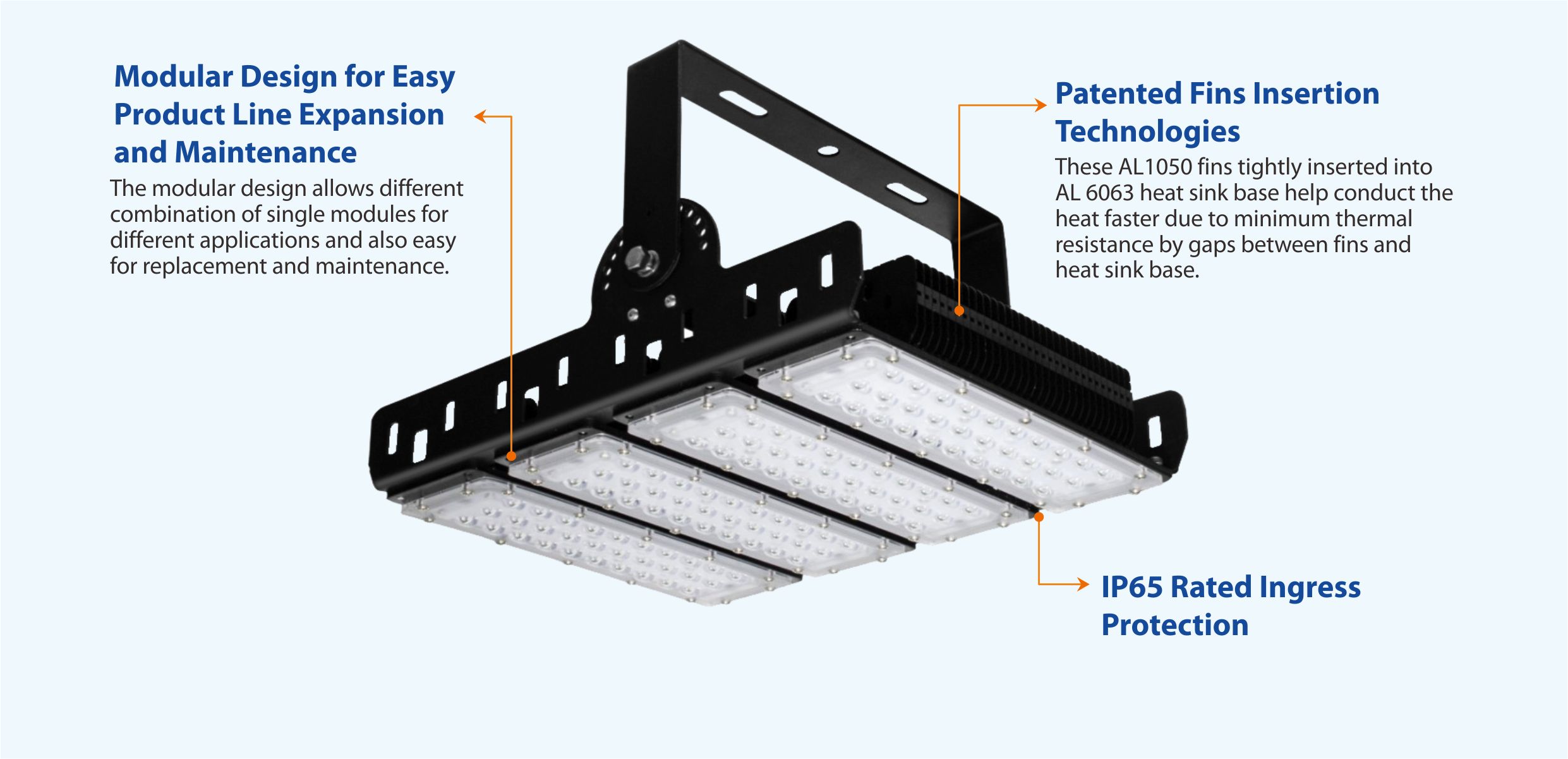

| High Performance Thermal DesignThe integrated AL6063 heat sink base & 2 side protection plates design maximizes the contact surface area for heat conduction and convection.Adjustable Multiple Angles Mounting BracketsThe heat sink assembly's mounting brackets have 13 holes to adjust to the desired mounting angle (up to 180°) for LED light installation conveniences.Patented Fins Insertion TechnologiesThese AL1050 fins tightly inserted into AL 6063 heat sink base help conduct the heat faster due to minimum thermal resistance by gaps between fins and heat sink base.Great Variety Beam Angle OptionsMultiple choice of great variety of LED SMD arrays and beam angles. |
 |

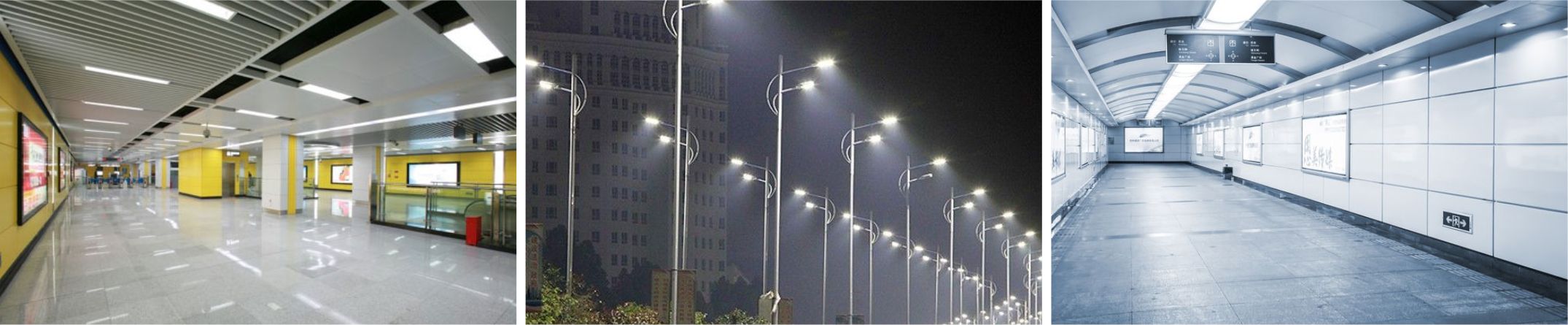

| Product Application: roads, railways, subways, tunnels and other underground passageway lighting, city streets, bridges, sidewalks and other road lighting, but also for the urban landscape, billboards, building facades and other landscape lighting. |
 |
| Model NumberPower(W)Size (mm)PCB Size (mm)Chip ModelMultiple-seriesConnectionMax.TemperatureBeam AngleSF105050WA:90xB:285xC:60222x52XTE10S 3P≦50°60°x 60°90°x 90°60°x 150°SF1100100WA:180xB:285xC:60222x52XTE6S 8P≦50°SF1150150WA:270xB:285xC:60222x52XTE12S 4P≦50°SF1200200WA:360xB:285xC:60222x52XTE10S 3P≦50°SF1300300WA:270xB:570xC:60222x52XTE12S 4P≦50°SF1400400WA:360xB:570xC:60222x52XTE10S 3P≦50° |
※ The above parameters are for reference only, ultimately you have to refer to the physical specification issued by the Company. |
