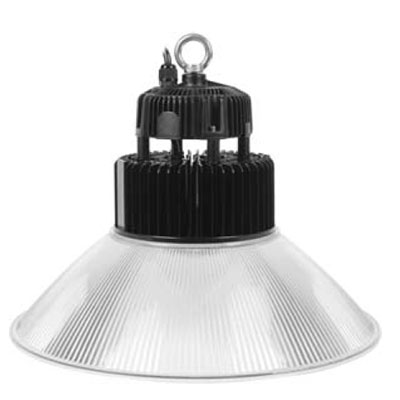

HG-001 LED Lighting Fixture--High Bay Light

Model Number: : DG180-100-001

Dimension(mm): : ∮180X80

Cooling Surface(mm²): : 398,982

Cooling Performance(lm): : 10000~14000

Thermal Resistance(℃/W): : 0.3-0.5 (Varies Upon COB Chips)

Dissipated Power(W): : 80W-100W

Weight : : 1.1 kgs/2.4 lbs

Material: : AL1070 with 3pcs∮6mm heat pipes

Surface Treatment Options: : Electrophoresis Black or Glossy White

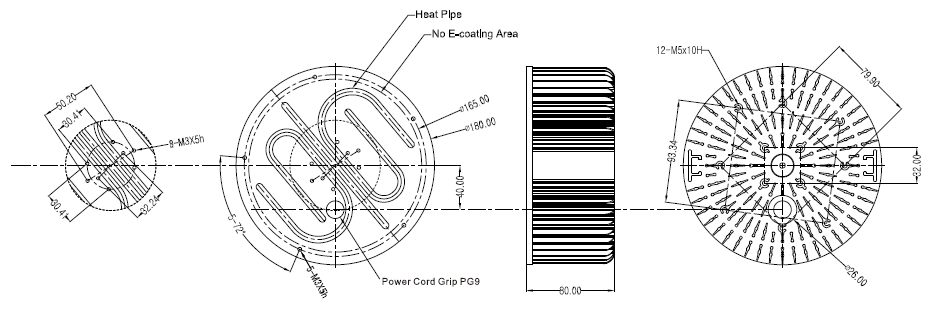

Mechanical Drawing

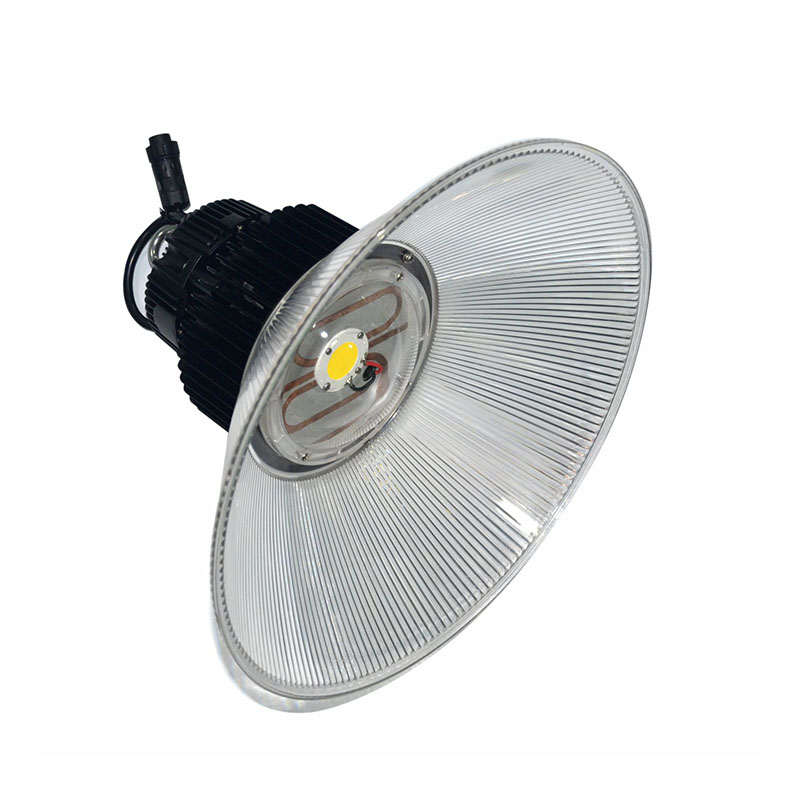

100W COB LED Lighting Fixture

Features :

● Best 100W COB LED Lighting Fixture with Best Heat Pipes Thermal Solution

● Industry Best 100W COB Thermal Solution

● Patented Heat Pipes Absolute Embedding Flatness Technology

● Much Faster Heat Dissipation Speed to Avoid Light Decay Risk

● Most Advanced Cold-Forging Heat Sink Production Techniques

● Much Better Thermal Conductive Aluminum Material (AL 1070)

● Most Advanced Eletrophoresis Coating Surface Treatment for Best Corrosion Resistance

● Flexible Mounting Systems Custom Design & Built

● Great Variety of COB LED Lighting Applications

Product Dimensions:

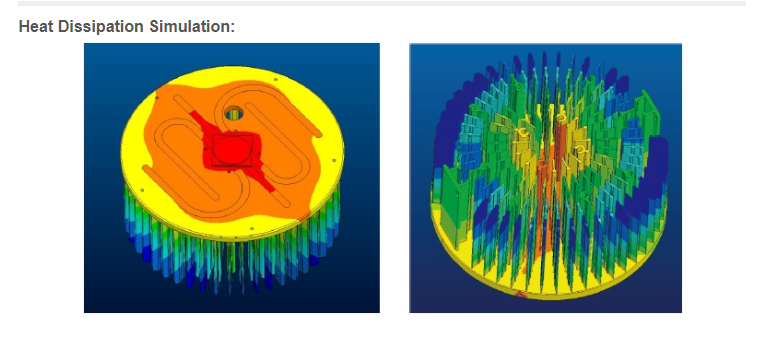

Heat Dissipation Simulation:

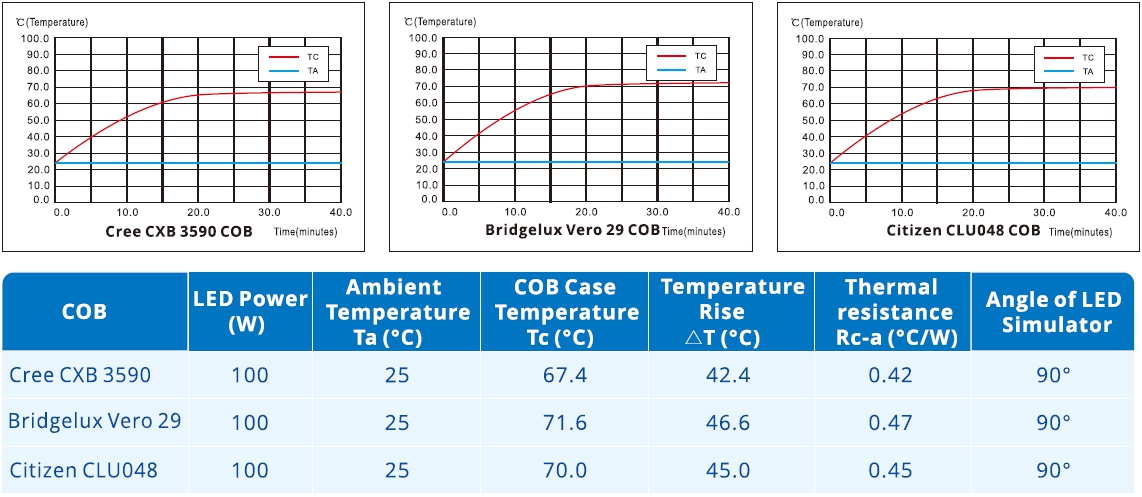

Temperature Rise Curve:

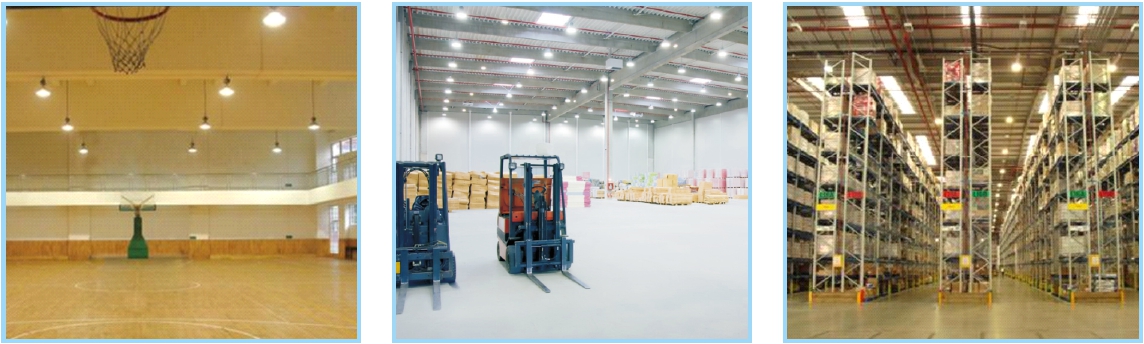

Applications:

A great variety of applications in High Bay Light, Down Light, Flood Light, Street Light, Sports Light, and more.
