HE-003 LED High Bay Light--High Bay Light

Model Number: : HE-003

Dimension(mm) : ∮366X402

Cooling Surface(mm²) : -

Cooling Performance(lm) : 28000

Thermal Resistance(℃/W) : -

Dissipated Power(W) : 200W

Weight : 5.7 kgs/12.5 lbs

Material : AL6063 Alumium Material

Surface Treatment Options : Electrophoresis Black

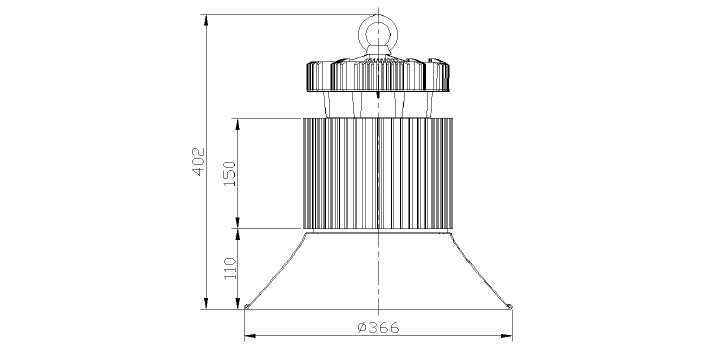

Mechanical Drawing

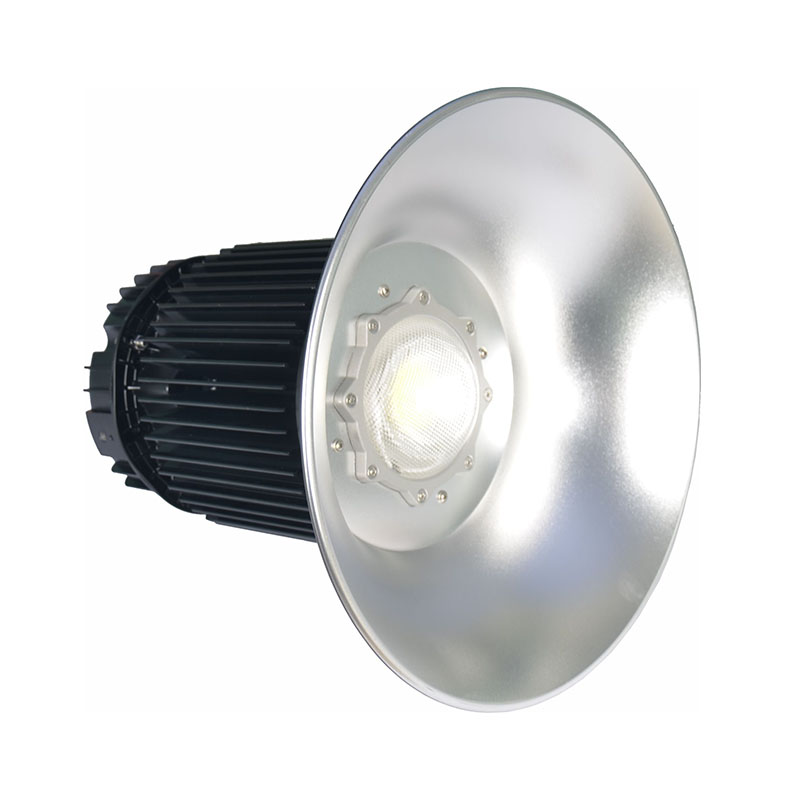

200W K-COB LED High Bay Light
Features :
● Patented 200W High Efficacy (140lm/w) & Least Thermal Requirement COB Chip（Tc＜70℃） ● Industry's Best Patented Super Speedy (Sonic Speed) Phase-Change Heat Sink (One Whole Integral Piece Design) ● Operating Temperature: -40°C~55°C (-40°F~131°F) ● IP Protection: IP67 ● Life Span(L70) ＞50,000hrs ● Great Varieties of LED Street Lighting Applications

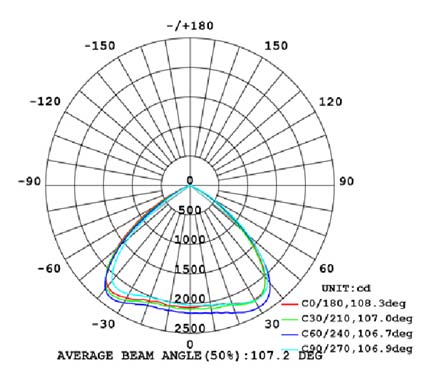

Photometric Specifications:	Light Distribution Curve:
Luminous Flux: 22,000~26,000lm Color Rendering Index(CRI): ＞70Ra Color Temperature (CCT): 2200-6500K Optional Beam Angle: 90°/ 120°
Mechanical Specifications:
Dimension: ∮366X402mm High reflectivity Aluminum Reflector Life Span(L70) ＞50,000hrs @25°C IP Rating: IP65
TE1200-001-A01 Dimensions:

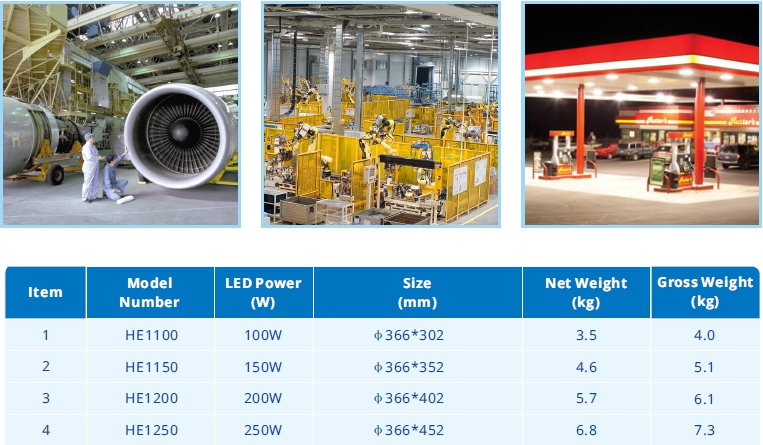

Applications:
A Great Variety of Lighting Applications on Spacious Environment: like Industrial Plants, Exhibition Hall, Highway Toll Stations and more.
