HG-003

Model Number : HG-003

Dimension(mm) : Ø180*80

Cooling Surface(mm²) : 10,000~14,000

Cooling Performance(lm) : 398,982

Thermal Resistance(℃/W) : 0.3~0.5 (Varies Upon COB Chips)

Dissipated Power(W) : 80-100

Weight : 1.1kgs/2.4lbs

Material : AL1070

Surface Treatment Options : Electrophoresis Black

PRODUCT DESCRIPTION

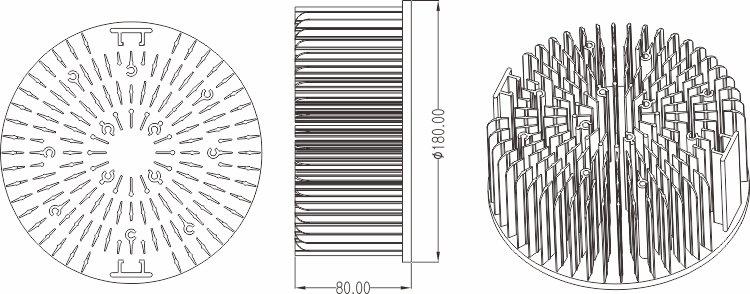

Mechanical Drawing

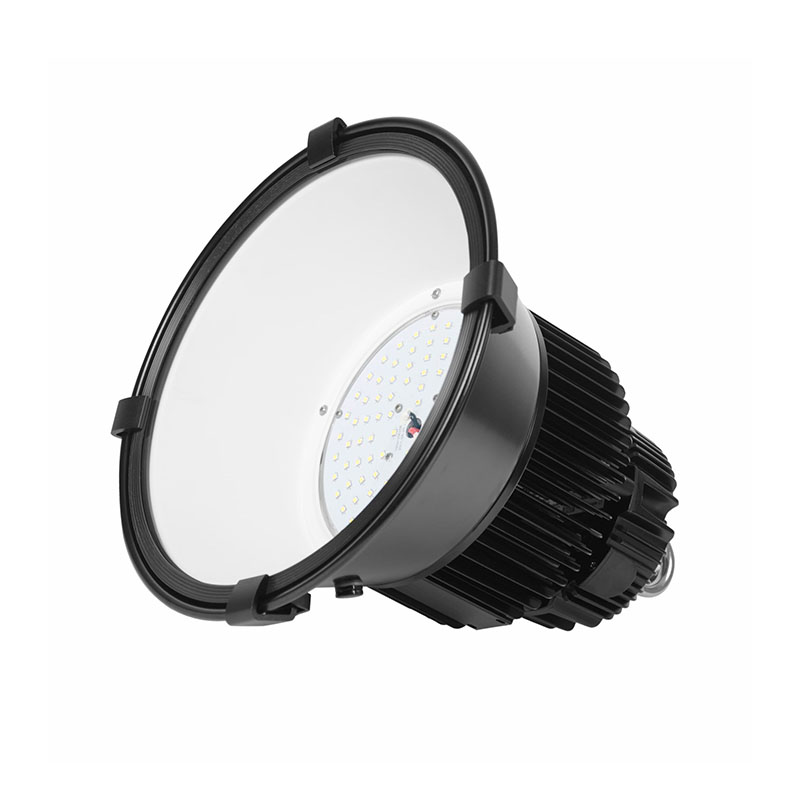

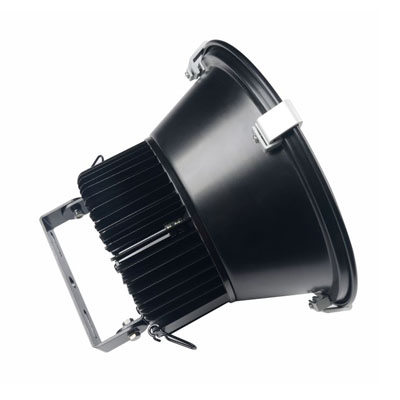

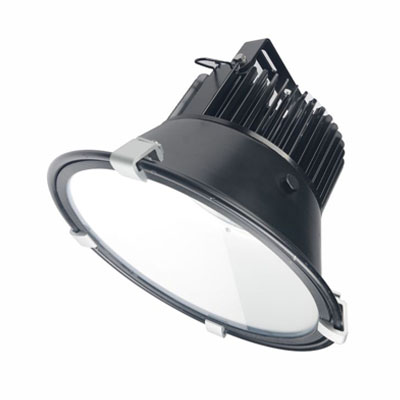

100W SMD LED Grow Light Heat Sink Assembly

Features :

● Industry Best 100W COB Thermal Solution

● Patented Heat Pipes Absolute Embedding Flatness Technology

● Much Faster Heat Dissipation Speed to Avoid Light Decay Risk

● Most Advanced Cold-Forging Heat Sink Production Techniques

● Much Better Thermal Conductive Aluminum Material (AL 1070)

● Most Advanced Eletrophoresis Coating Surface Treatment for Best Corrosion Resistance

● Flexible Mounting Systems Custom Design & Built

● Great Variety of COB LED Lighting Applications


Product Dimensions:

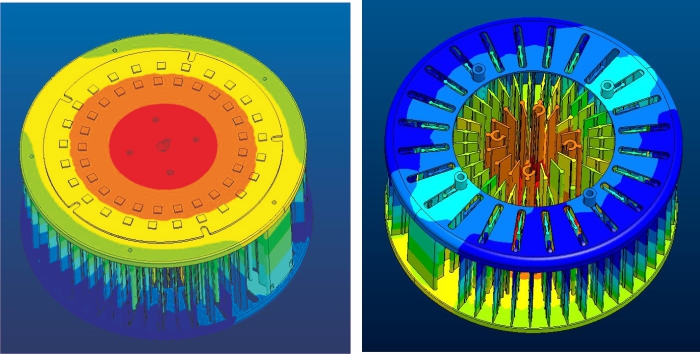

Heat Dissipation Simulation:2.jpg

Heat Dissipation Simulation:

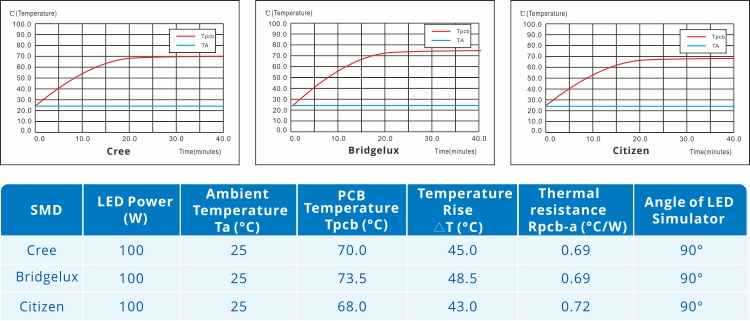

Temperature Rise Curve:

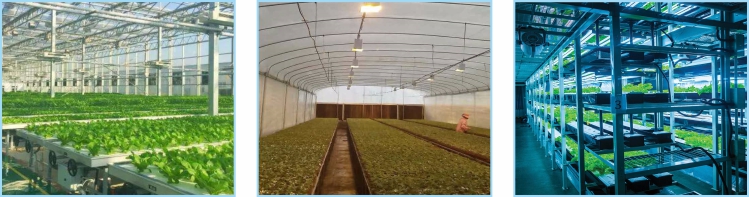

Applications:

A great variety of applications in High Bay Light, Down Light, Flood Light, Street Light, Sports Light, and more.
