Model Number : DG118-050-001
Dimension : ∮118* 80
Thermal Resistance(°C/W) : 1.4~1.5
Total Dissipated Power (W) : 50W
Weight : 0.58 kgs/1.28 lbs
Material : AL 1070
Surface Treatment Options : Anodized Black/Silver

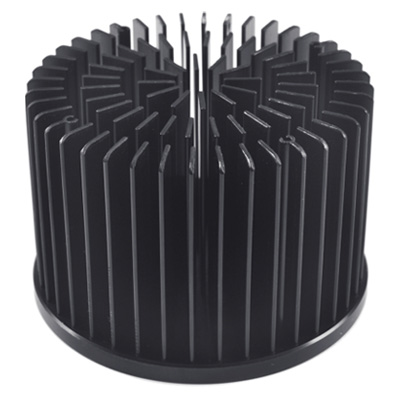

40-50W COB LED Down Light Heat Sink Module (6") |
Features : |
● Best Thermal Performance for 40W-50W COB LED (Recessed) Down Light I Track Light Application ● Integral Whole Design: Heat Sink and LED Driver Power Cables Conduit Box ● Best Fit Most Popular COB LED Brands: Cree CXB2530 I Bridgelux V18 (50W) I Citizen CLU038; Thermal Resistance 0.8-1.1 'C/W ● Cold-Forging Benefits: Lower Fin Height, Lighter Weight, and Down Size ● Better Thermal Conductive Aluminum AL 1070 Material Than Extrusion AL6061 or Die-Casting ADC12 ● Advanced Surface Treatment for Corrosion Protection ● Great Varieties of LED Lighting Applications |

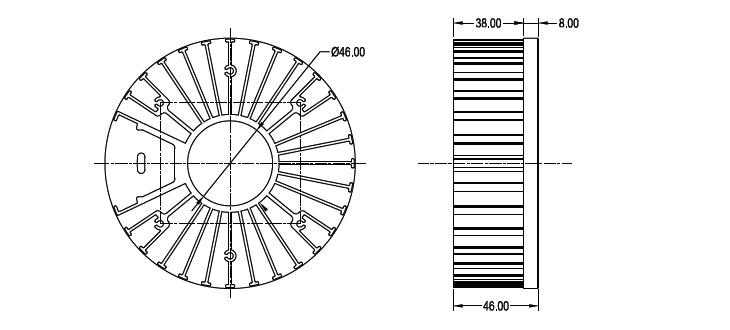

Product Dimensions: |
 |
| Heat Dissipation Simulation: |

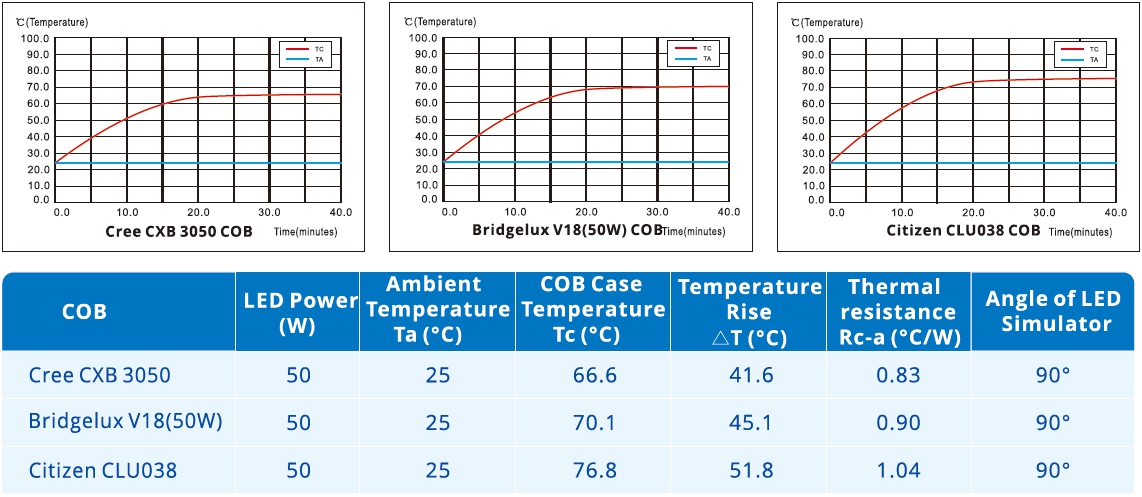

Temperature Rise Curve: |
 |

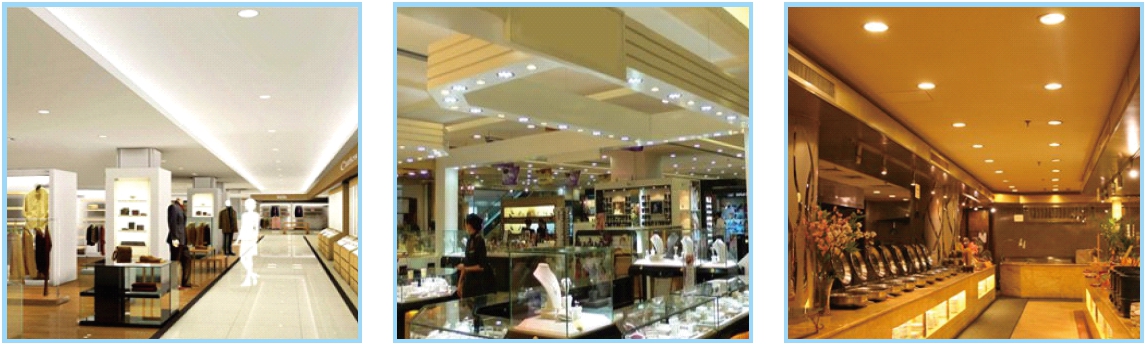

Applications: |
| A great variety of applications in Recessed Down Light, Track Light, Spot Light and more |
 |
LED Light
IT Server & Storage
