Model Number : FE1200-002-A01
Wattage : 200W
Voltage : AC90-305V 50/60Hz
LED Light Source : 200W K-COB Chip
Power Factor（PF） : ≥0.92
Driver Efficiency : ≥93.5%
Surge Protection : IEEE C62.41.2 10KV/10KA

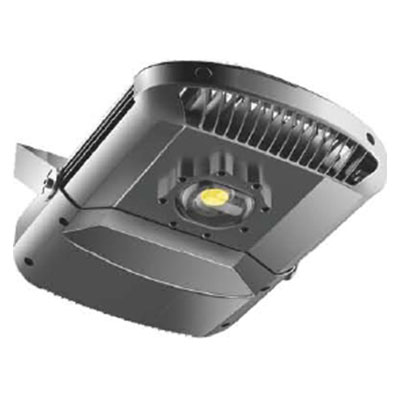

200W COB Area /Street Light | |
Features : | |
● Patented 200W High Efficacy (140lm/w) & Least Thermal Requirement COB Chip (Tc<70°C) ● Industry's Best Patented Super Speedy (Sonic Speed) Phase-Change Cooling Solution ● Operating Temperature: -40°C~55°C (-40°F~131°F) ● IP Protection: IP66 ● Life Span(L70) ＞50,000hrs @25°C ● Great Variety of COB LED Lighting Applications | |

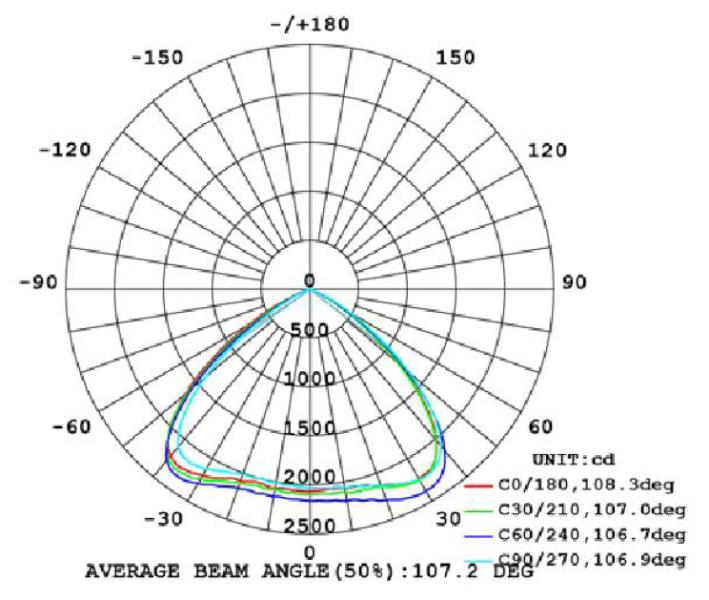

Photometric Specifications: | Light Distribution Curve: |
| Luminous Flux: 22,000~26,000lm Color Rendering Index(CRI): ＞70Ra Color Temperature(CCT): 6000～6500K Optional Beam Angle: 20°/ 120°/ 90° |  |
Mechanical Specifications: | |
| Dimension (mm): 505X270X107mm Patented Aluminum Phase Change Heat Sink Chamber and Micro Nano Working Fluid Life Span(L70) ＞50,000hrs @25°C IP Rating: IP66 | |

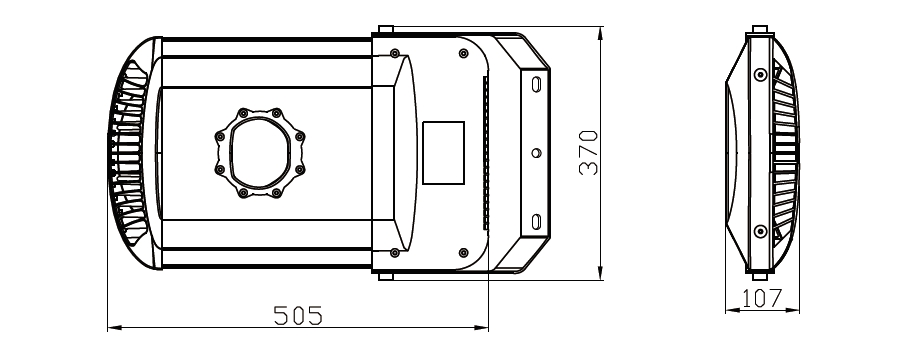

FE1200-002-A01 Dimensions: | |
 | |
| Installation (Mounting Bracket)： | |

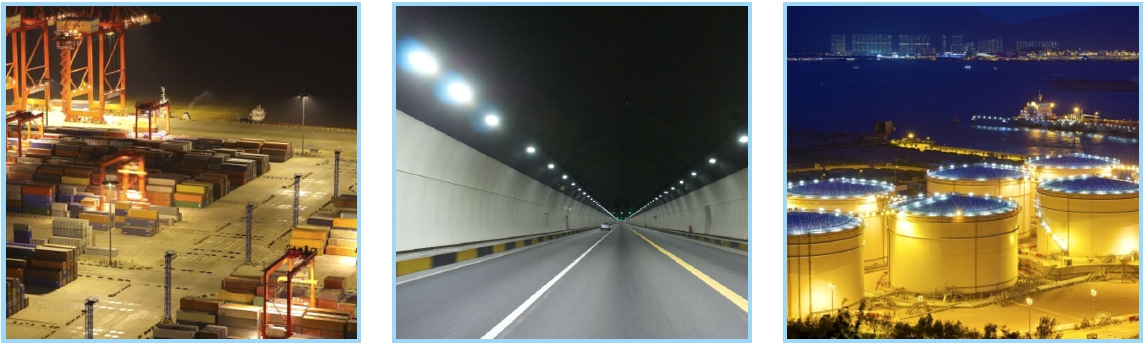

Applications: | |
| A Great Variety of Applications on Spacious Environment, like Area/Street, Tunnel, Air Port/Sea Port Shipping Yards, Oil Refinery and more. | |
 | |
