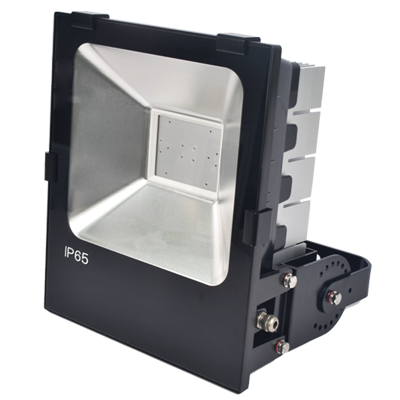

FE1200

Model Number : FE1200

Power (W) : 200W

Size (mm): : A:351xB:389xC:165

PCB Size (mm) : : 130x119

Chip Model : COB/3030

LED QTY (pcs) : COB50Wx4/200

Series/Parallel : 5S/40P

Power Supply : 30V (6A)

PRODUCT DESCRIPTION

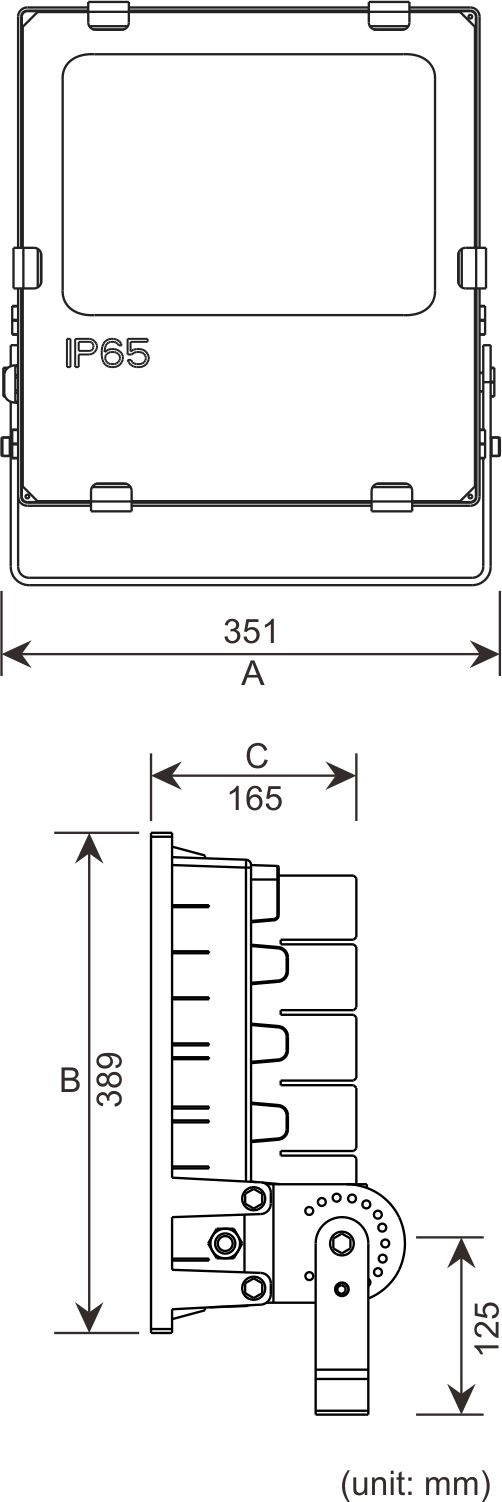

Mechanical Drawing






The perfect combination of heat dissipation and thermal conduction. 3D type radiator which is formed from cooling modules and fin ducts can greatly lower down the temperature of light source, extending its life span.

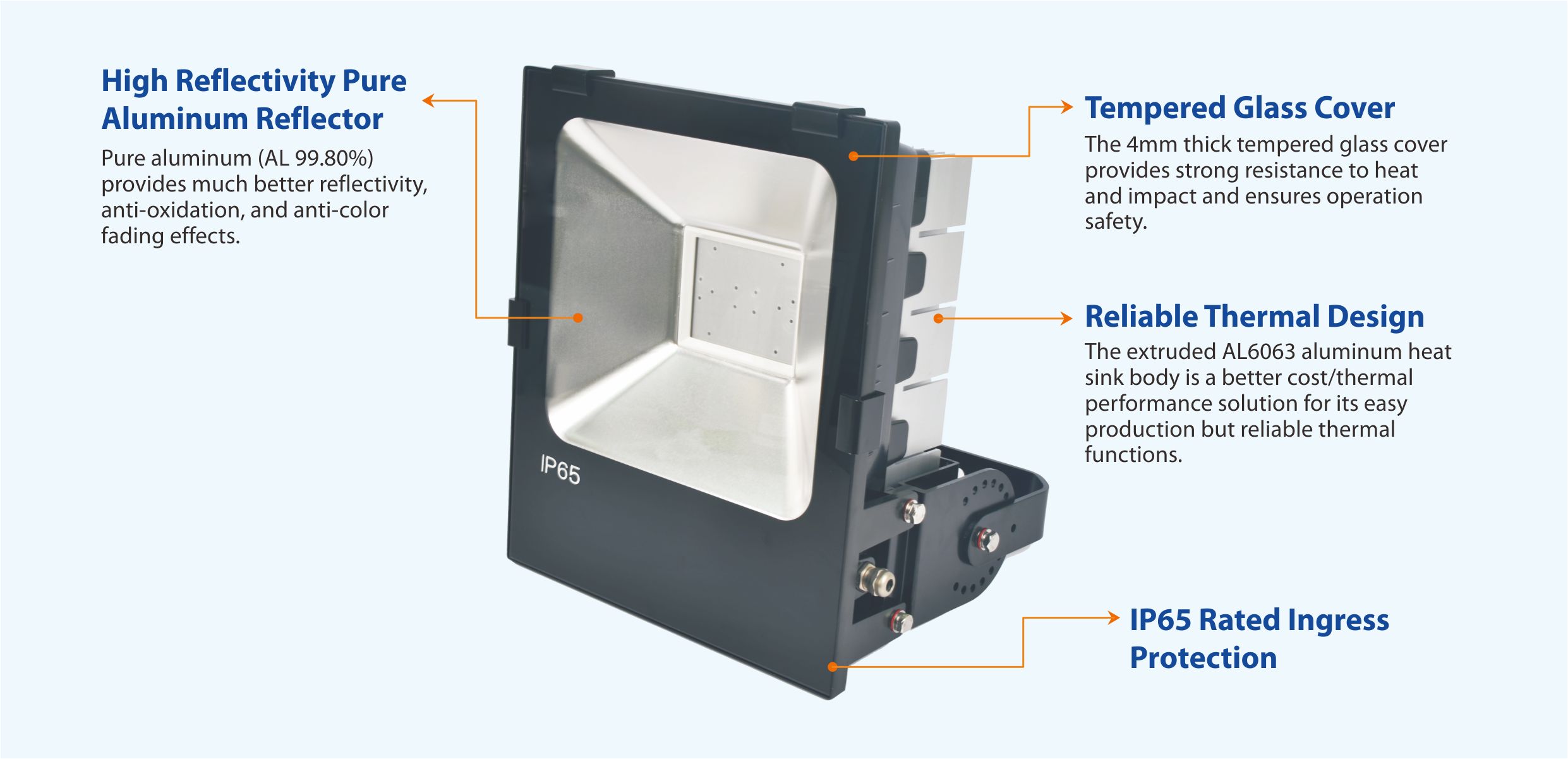

Strong Die-Casted HousingThe strong structure design of this die-casted aluminum housing help protection flood light from any possible impacts and damages.Adjustable Multiple Angles Mounting BracketsThe heat sink assembly's mounting brackets have 15 holes to adjust to the desired mounting angle (up to 120°) for LED light installation conveniences.Selection of High Quality MaterialsUsing AL6063 Aluminium for body heat extrusion, and thermal performance is stable and reliable.Tempered Glass CoverThe 4mm thick tempered glass cover provides strong resistance to heat and impact and ensures operation safety. The tempered glass cover also supply better than industry average light transmittance rate over 91% maximum.Flexible Adoption of Great Variety SMD/COB LED ModulesThis thermal design allows choices of great variety of SMD/COB LED modules and saves products series development costs and efforts.High Reflectivity Pure Aluminum ReflectorPure aluminum (AL 99.80%) provides much better reflectivity, anti-oxidation, and anti-color fading effects.

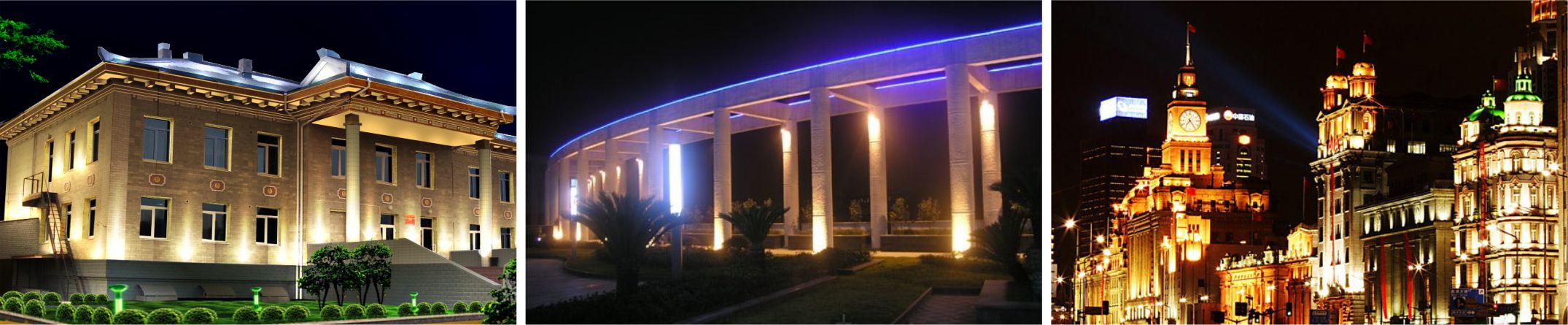

Product Application: shopping malls, exhibition halls, hotel exterior, billboards, sculpture, the square night view, landscape lighting, grow lamps, etc.

Model NumberPower(W)Size(mm)PCB Size (mm)Chip ModelLED QTY (pcs)Series/ParallelPower SupplyFE1100100WA:326xB:339xC:160118x85COB/3030COB 50Wx2/1005S/20P30V (3A)FE1150150WA:326xB:339xC:160118x85COB/3030COB 70Wx2/1505S/30P30V (5A)FE1200200WA:351xB:389xC:165130x119COB/3030COB 50Wx4/2005S/40P30V (6A)FE1250250WA:351xB:389xC:165130x119COB/3030COB 75Wx4/2505S/50P30V (8A)

※ The above parameters are for reference only, ultimately you have to refer to the physical specification issued by the Company.
※ All the products are supplied in kits which does not include power and lamp beads.
