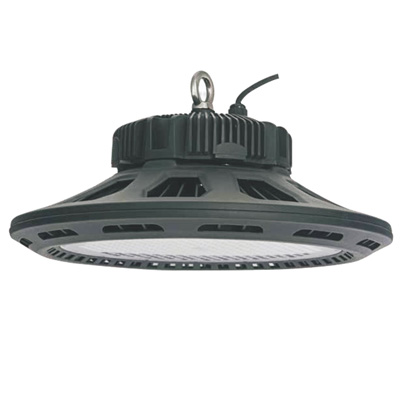

Model Number: : HU1160
Power (W): : 160
Size (mm) : ∮325X78
Lamp Panel Size (mm): : ∮199X2
Chip Model: : SMT/3030
LED QTY (pcs): : 245
Series/Parallel: : 7S/35P
Electrical Parameter: : 21.6~36V 4.5A

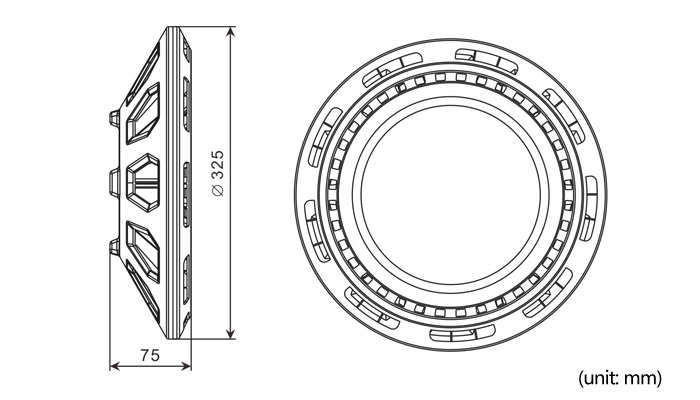

Mechanical Drawing
 | |
| |
 | |
 | |
| The perfect combination of heat dissipation and thermal conduction. 3D type radiator which is formed from cooling modules and fin ducts can greatly lower down the temperature of light source, extending its life span. | |
| |

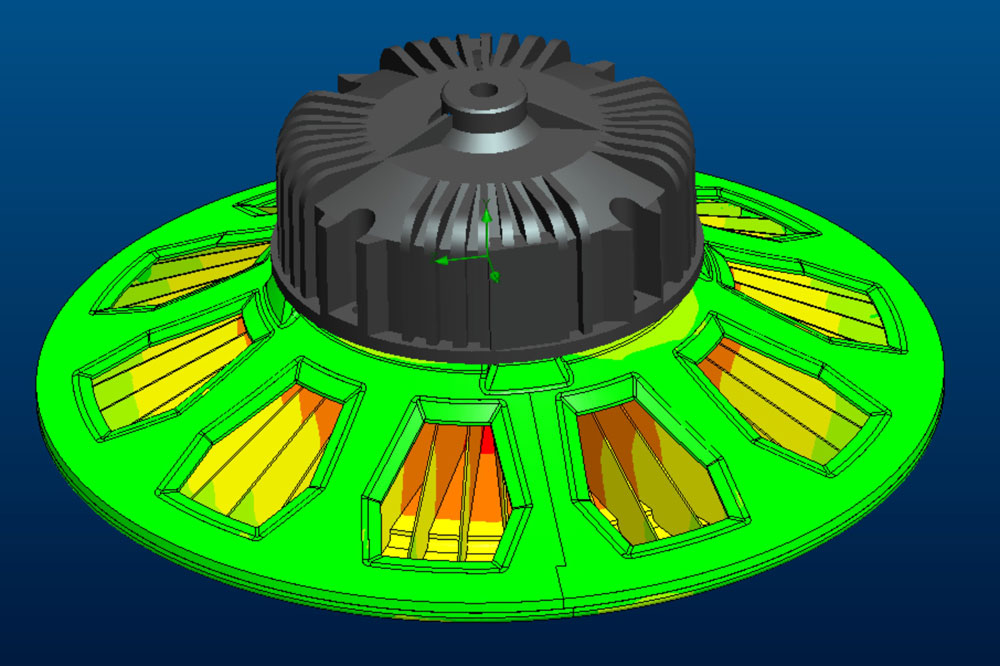

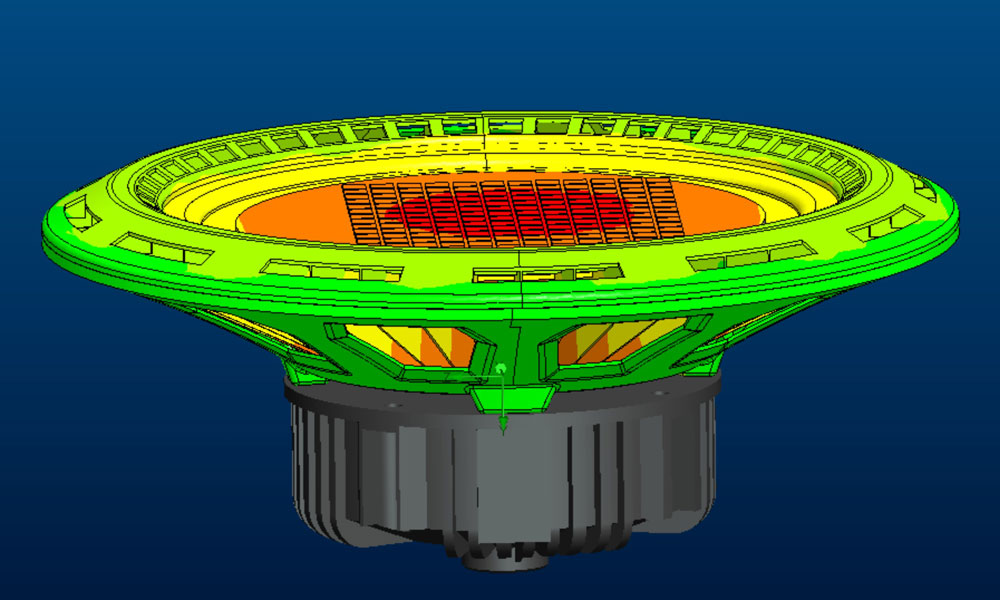

| Simulation under SMT Chip Model#3030 | |
 |  |

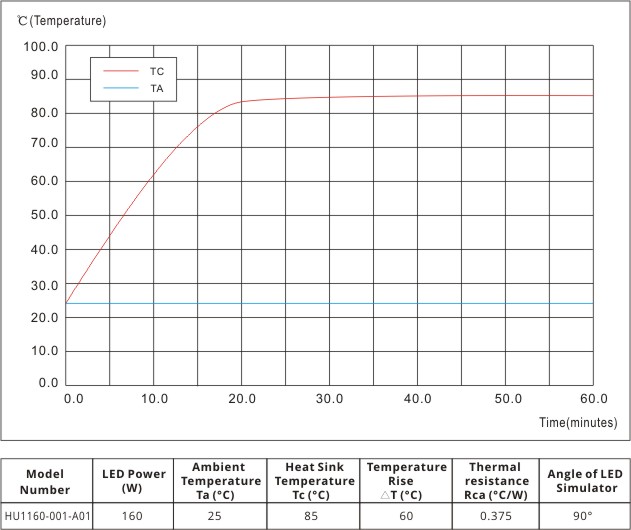

Power=160W Ta=25 Tc=85 △T=60 Rca=0.375℃/W
| |
 | |
| |

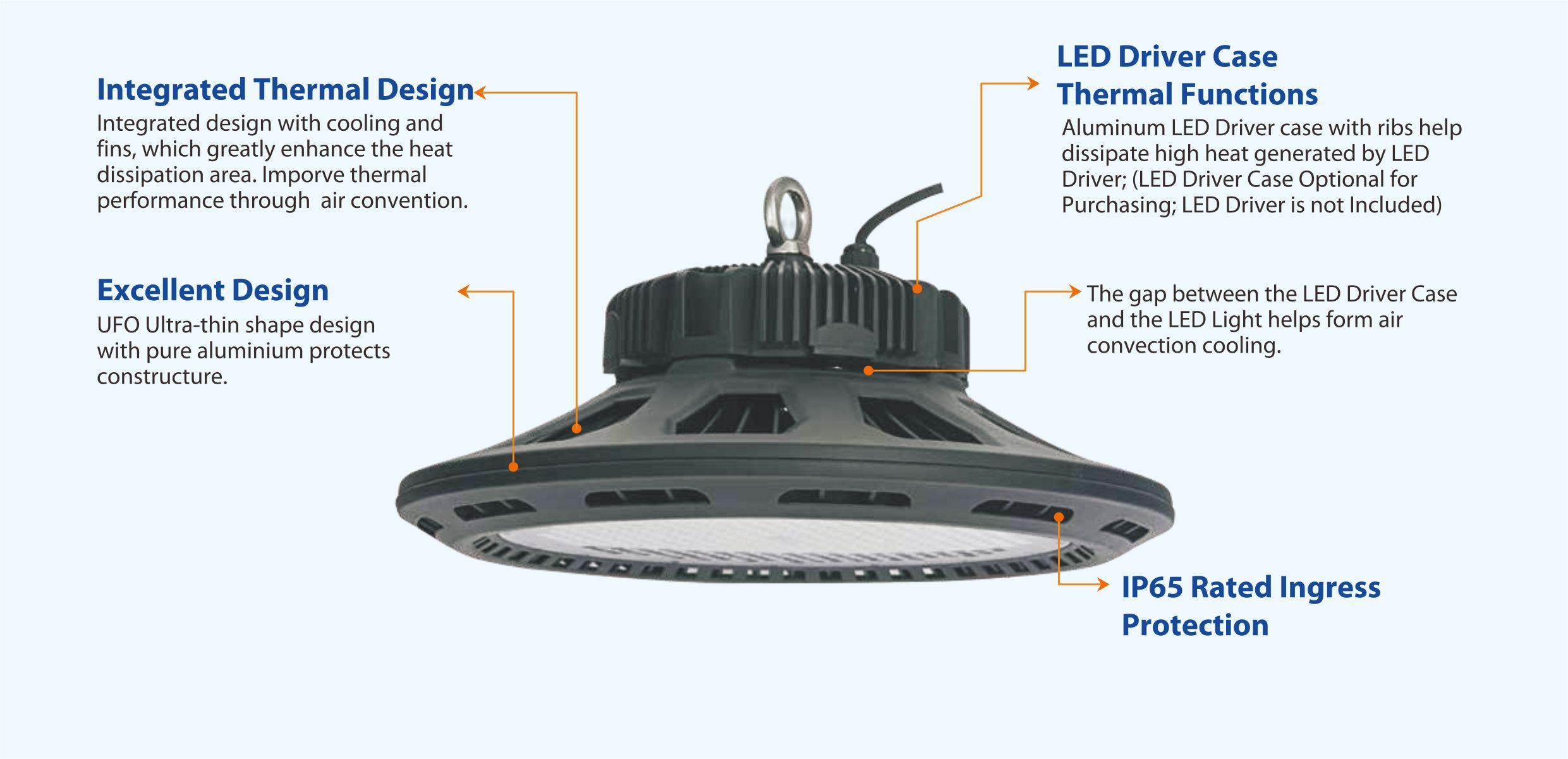

| High-Performance Thermal DesignIntegrated design with cooling and fins,which greatly enhance the heat dissipation area. Imporve thermal performance through air convention.Patented Riveting TechnologyMainly using AI1050 cooling fins with 4mm pure aluminium plate to tighten during riveting process.High Light Transmission LensLens with high light transmission PCmaterials;60°,90°,120° angles adjustable points.Lens Respirator DesignIntegrated design with respirator and lens which reduces assembly issue;Can clearfog;Avoid condensation;life-extending. | |
 | |

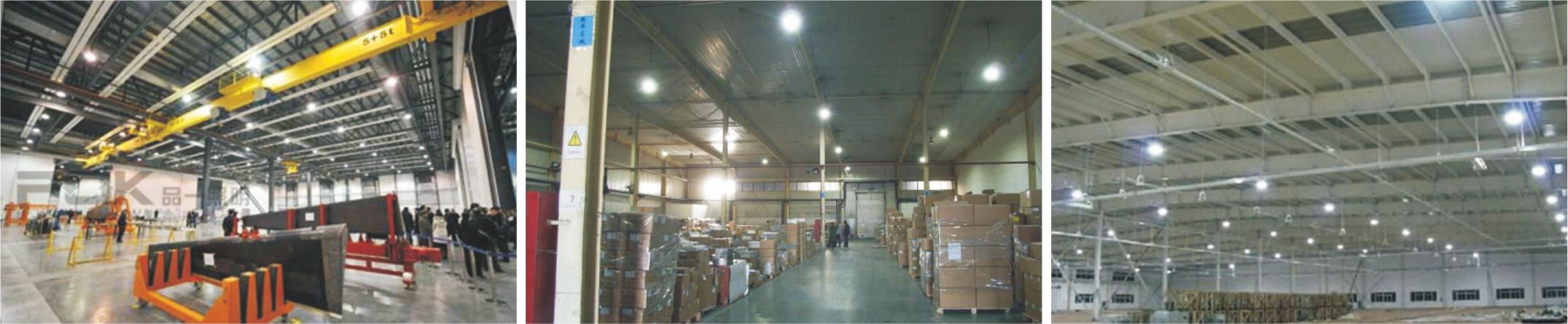

| Product Application:workshops,industrial plants,warehouses,stadiums,airport terminal and other lighting places. | |
 | |
| Model NumberPower(W)Size(mm)Lamp Panel size(mm)Chip ModelLED QTY (pcs)Series/ParallelElectricalParameterHU1100100W∮260x68∮149x2SMT/30301547S/22P21.6-36V (2.7A)HU1160160W∮325x78∮199x2SMT/30302457S/35P21.6-36V (4.5A)HU1240240W∮400x86∮258x2SMT/30303609S/40P36-60V (4.5A) | |
※ The above parameters are for reference only, ultimately you have to refer to the physical specification issued by the Company. | |
