Model Number : TE1200-001-A01
Input Power : 200W
Voltage : AC90-305V 50/60Hz
LED Light Source : 200W K-COB Chip
Power Factor （PF） : ≥0.92
Driver Efficiency : ≥93.5%
Surge Protection : IEEE C62.41.2 10KV/10KA

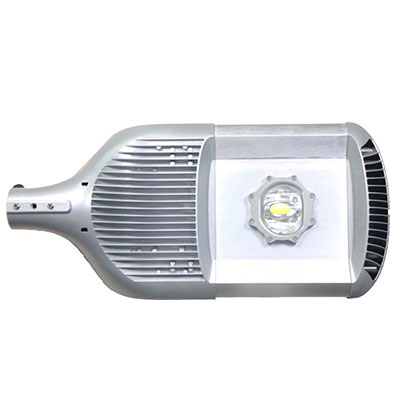

200W K-COB LED Area/Street Light | |
Features : | |
● Patented 200W High Efficacy (140lm/w) & Least Thermal Requirement COB Chip（Tc＜70℃） ● Industry's Best Patented Super Speedy (Sonic Speed) Phase-Change Cooling Solution ● Operating Temperature: -40°C~55°C (-40°F~131°F) ● IP Protection: IP67 ● Life Span(L70) ＞50,000hrs ● Great Varieties of LED Street Lighting Applications | |

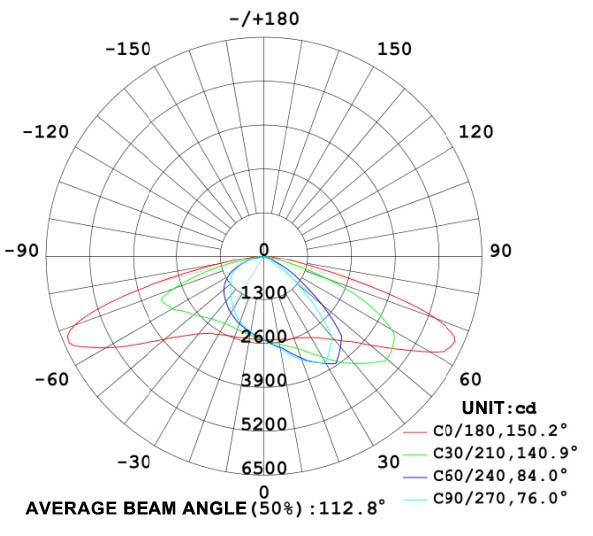

Photometric Specifications: | Light Distribution Curve: |
| Luminous Flux: 22,000~26,000lm Color Rendering Index(CRI): ＞70Ra Color Temperature (CCT): 2200-6500K Optional Beam Angle: 90°/ 120° Type I, II, III, IV optional |  |
Mechanical Specifications: | |
| Dimension: ∮366X402mm Patented Aluminum Phase Change Heat Radiator and Micro Nano Working Fluid Life Span(L70) ＞50,000hrs @25°C IP Rating: IP67 | |

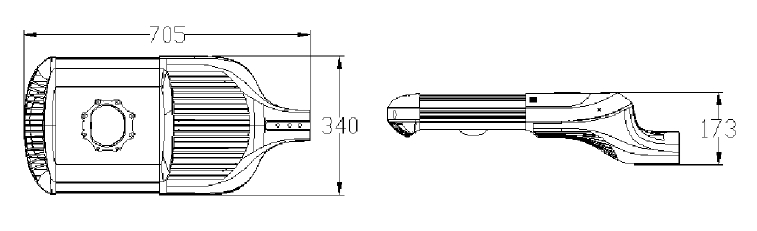

TE1200-001-A01 Dimensions: | |
 | |

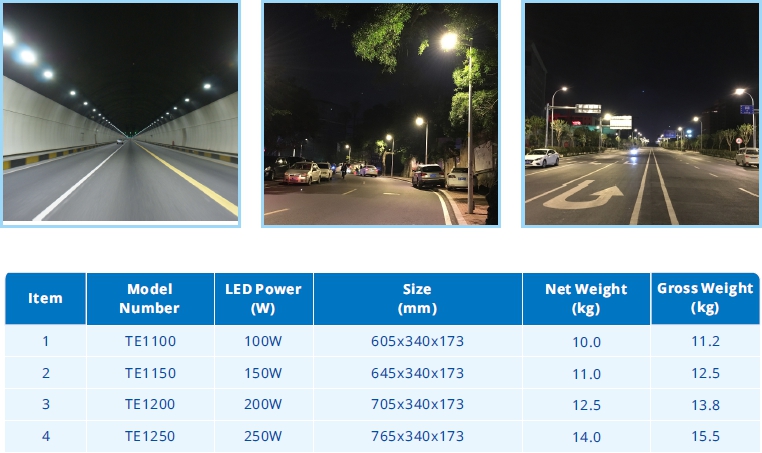

Applications: | |
| A Great Variety of Applications on Area/Street Lighting, like Freeways, Streets, Bridges, Tunnels, Parks, Shopping Plazas, Parking Lots and more. | |
 | |
